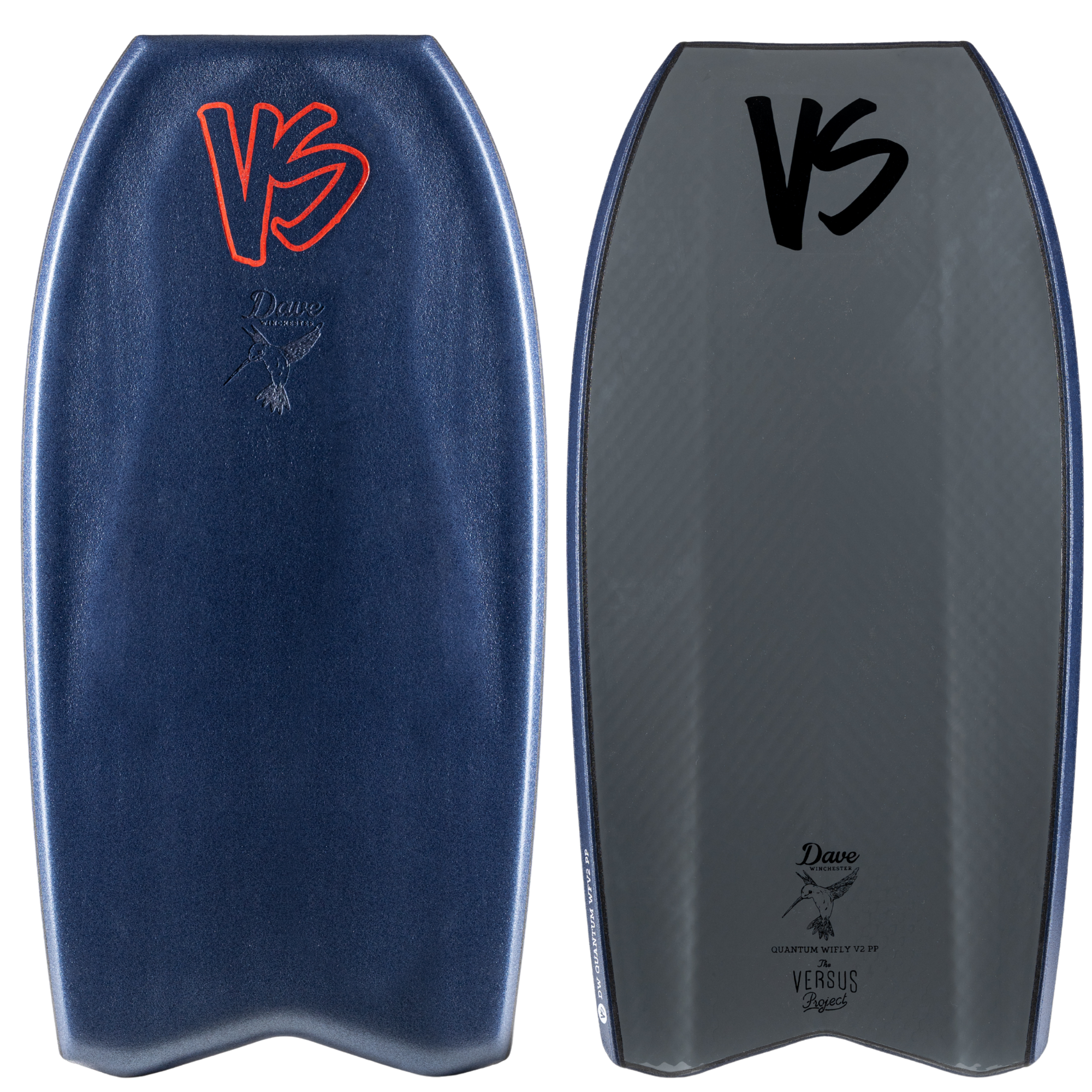

VS Dave Winchester Quad Concave PFS-T Quantum Bodyboard
Dave Winchester has brought his style, versatility & all round talent to VS. Winny has created this model for the those after the top shelf version of his template in Parabolic core. Dave has a legion of fans through his explosive & elegant wave riding. This model is a great choice if you dream of riding like Winny one day.
UNRIVALED SPEED. UNMATCHED RECOIL. UNBELIEVABLE CONTROL.
The all-new Quantum Series has been designed for the advanced rider and represents the pinnacle in advanced bodyboard design. We started with the dynamic loading principals of PFS-T and reconfigured the QuadConcave to match the tapered beam orientation. The result is the fastest board we’ve ever tested.
PFS-T - Dual Divinycell PFS beams feature 1° of toe-in from tail to nose. This effectively positions the beams in-line with the leading hand, elbow and hip for optimal dynamic loading, resulting in enhanced flexion recoil and projection.

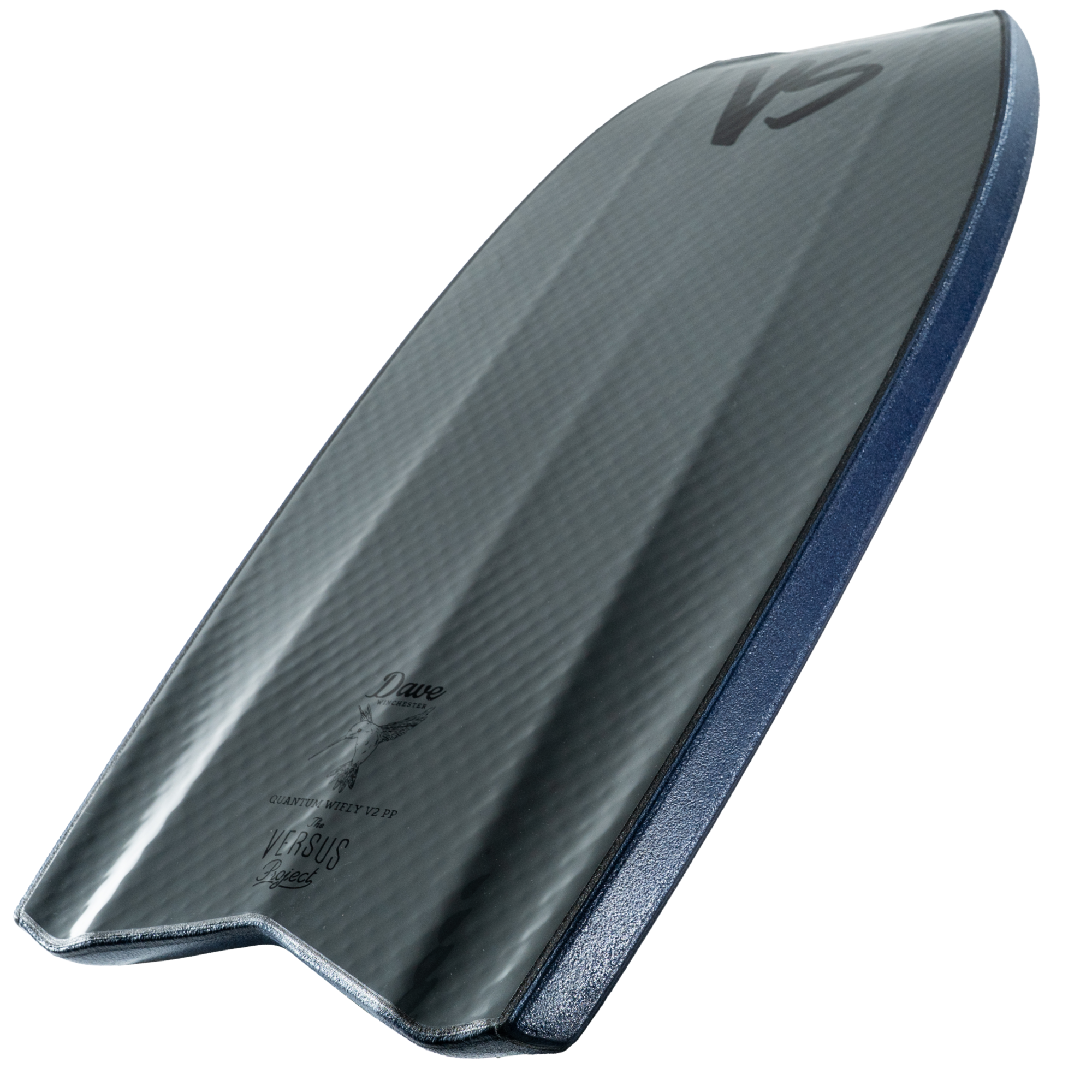

TAPERED QUAD CONCAVE - The new tapered QuadConcave is shaped with custom-built Aku CNC precision. The angled taper follows the PFS-T beam orientation, creating hydrodynamic lift through the tail for lightning fast board speed and enables quicker release out of turns without sacrificing edge control.
Features
-
Core- PFST-PP
-
Slick- Surlyn slick
-
React Mesh: Diamond shaped mesh weave fused between the boards core and slick bottom for enhanced stiffness and recoil.
-
Tail- The WIFLY V2 tail is a progressive tail design incorporating the hydrodynamic flow from the Quad Concave for more positive traction during bottom turns and lip drives. The aggressive Deep V tail's slightly shorter rails & the angled point from the tip of the tail to rails allows for better release and works in conjunction with the Quad Concave to release in tight spins & pocket moves. In the testing phase it was found that the Deep V removed a lot of volume from the tail area, so to compensate for the reduced volume there is an added 1/2” to length without changing nose, wide-point and tail widths. So if you ride a 41.5” in crescent tail you will ride a 42” in the WiFly V2.
- AKU Quad Concave
- Parallel Flex System
-
1 X Carbon Fibre/ CFT Stringer- Lightweight filament wound carbon composite rods offering rigidity and durability.
-
3DC Deck Contours- 3-dimensional deck contours
Unlike router (hand-held) cut contours, which are one constant depth, 3DC deck contours are cut on the Aku machine and are graduated from edge to edge, more like a bottom channel.
-
Nose bulbs- A slightly raised area of foam on the nose of the board which create a comfortable spot to grip the nose.
- 55/45 Double Rails
This design is meant to be ridden 1/2” longer than a normal board. If you normally ride a 41.5”, you ride a 42” WiFly V2. On the WiFly V2 the tail is extended to give more volume. The extended 1/2” length is vitally important to how this board performs.
DW K19 PP QUANTUM WFV2 3DC
41.5
Nose - 11 3/4
Width - 20 3/4
Nose to wide point - 18 3/4
Tail - 18
Finished - 53mm
42.5
Nose - 12 1/8
Width - 21 1/4
Nose to wide point - 19 1/4
Tail - 18 1/2
Finished - 54mm
43.5
Nose - 12 3/8
Width - 21 3/4
Nose to wide point - 19 3/4
Tail - 18 5/8
Finished - 55mm
Tolerance
Length +/- 1/8”
Width +/- 1/8”
Thickness +/- 1mm
Manufactured in Indonesia at Broady Indonesia, home of the best shapers in the world and the leader of Bodyboard Quality and Technology.
